Flow

Flow monitoring and control is the foundation of our instrumentation section. Liquid flow measurement is measured by a wide range of principles which include paddle wheel, magmeter, oval gear and ultrasonic. Sensors and switches fit inside common bodies in various materials which offer simple, reliable and accurate flow and batch control. Go with the flow.

WATER FLOWMETERS

Sizes: ½” to 12”
Threaded/Flanged connection
PN16/Class 150
SS/Cast Iron body

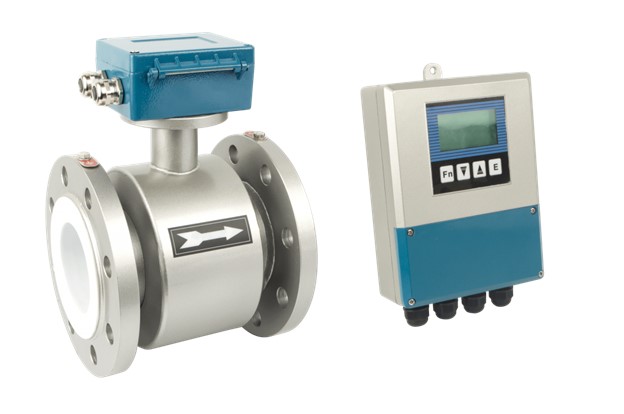

ELECTROMAGNETIC FLOWMETER

With Local/Remote Display
Output: 4-20 mA/0-10 V with Modbus/BAC net Communication
Medium: Water/Chemicals/Fuel
Body: SS/CI/DI
Connection: Threraded/Flanged
Size: 2” to 24”

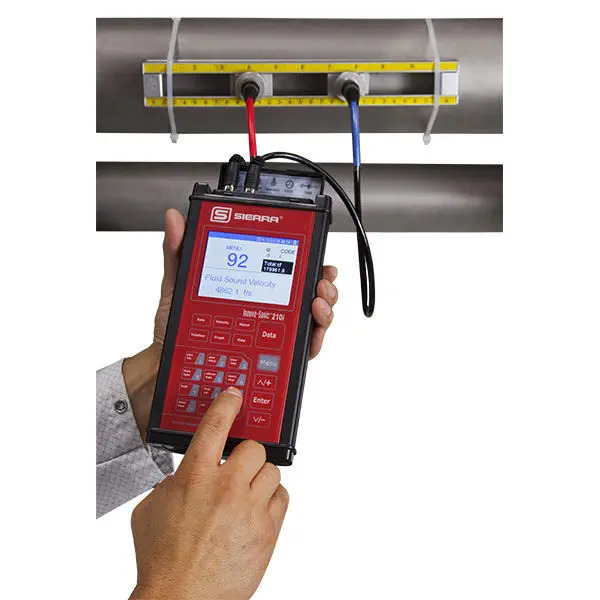

ULTRASONIC PORTABLE CLAMP ON FLOWMETER

Application/use

HVAC and energy system audits, Check system meters, Pump verification, Boiler testing, Leak detection, Filter sizing, Ultrapure water measurement, Heavy fuel oil metering, Condensate measurement, Balancing systems, Clean in place evaluation, Fire system testing, Hydraulic system testing

6
Flow Range – 0.1m/sec to 20m/sec bi-directional
Display – 64 x 240 pixels graphic display
Set-up via 16 key control panel
‘A’ Transducers in mounting rail:– 13mm OD to 115mm OD pipes
‘B’ Transducers in mounting rail:– 50mm OD to 2000mm OD pipes.
Battery or mains operation
Rechargeable NiMH battery
Battery Life – 14 hours (2.5 hours charge time), depending on load
Power – 110 – 240VAC +/-10% supply via PSU
4 user selectable languages including English, German, French and Spanish
Accuracy Pipe ID > 75mm – ±0.5% to ±2% of flow reading for flow rate >0.2m/s
Accuracy Pipe ID 13-75mm – ±3% of flow reading for flow rate >0.2m/s
CE approved

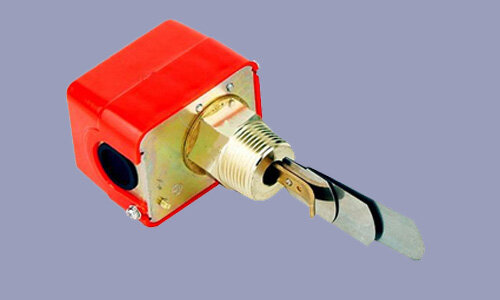

FLOW SWITCHES

Flow Switch is a mechanical switch that is switched on or off in response to the flow or non-flow of a fluid such as air or water. The switch typically operates through the use of a paddle which gets displaced due to the force of fluid moving past it.

Body: SS
Connection: Threaded
